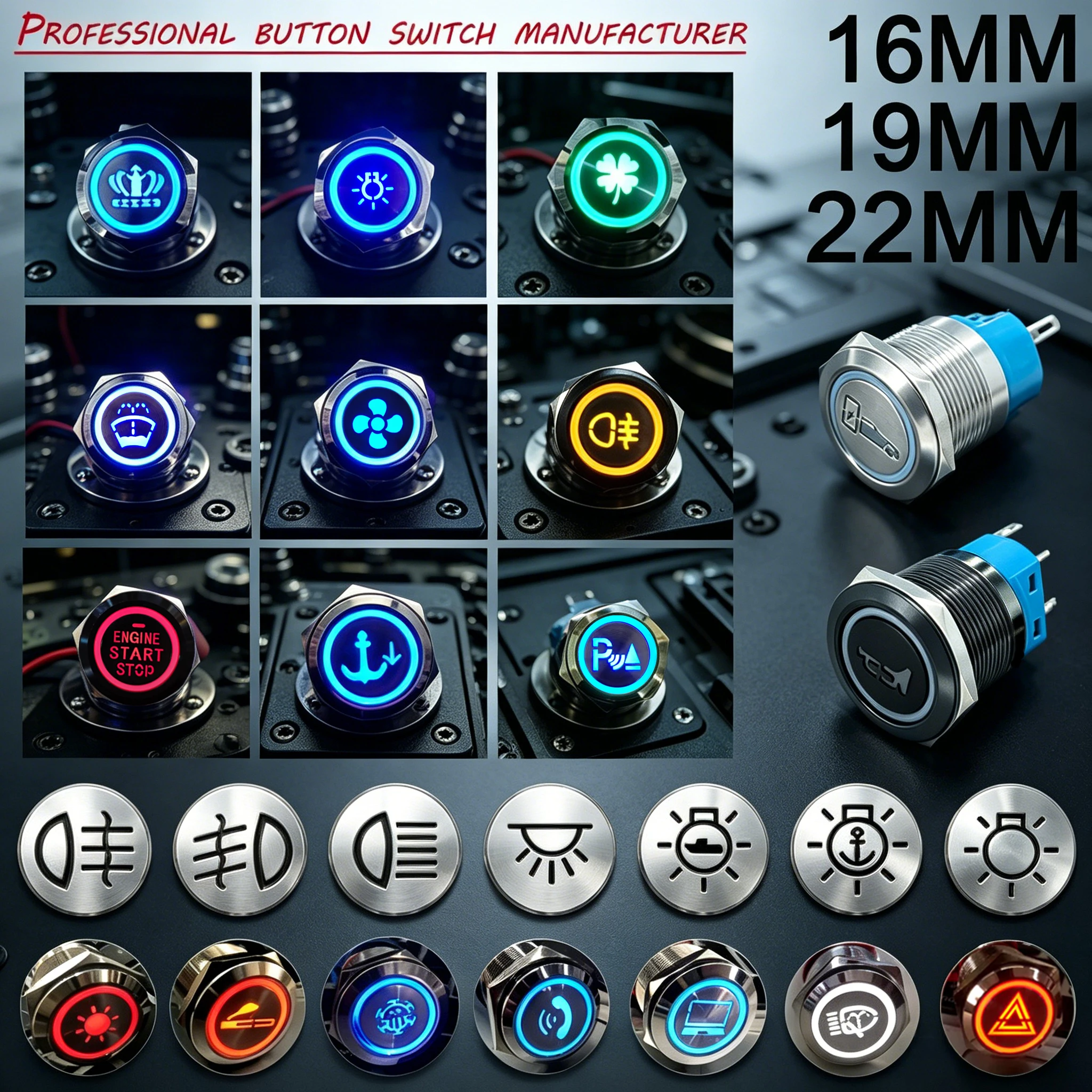

16/19/22MM Customized Metal Button Switch LED With Socket 12V 24V Black/Silver Waterproof Suitable for Cars, Ships, Motorcycles
16/19/22MM Customized Metal Button Switch LED With Socket 12V 24V Black/Silver Waterproof Suitable for Cars, Ships, Motorcycles - Image 2
16/19/22MM Customized Metal Button Switch LED With Socket 12V 24V Black/Silver Waterproof Suitable for Cars, Ships, Motorcycles - Image 3
16/19/22MM Customized Metal Button Switch LED With Socket 12V 24V Black/Silver Waterproof Suitable for Cars, Ships, Motorcycles - Image 4
16/19/22MM Customized Metal Button Switch LED With Socket 12V 24V Black/Silver Waterproof Suitable for Cars, Ships, Motorcycles - Image 5
16/19/22MM Customized Metal Button Switch LED With Socket 12V 24V Black/Silver Waterproof Suitable for Cars, Ships, Motorcycles - Image 6
,

16/19/22MM Customized Metal Button Switch LED With Socket 12V 24V Black/Silver Waterproof Suitable for Cars, Ships, Motorcycles

Price range: $ 5.95 through $ 9.65

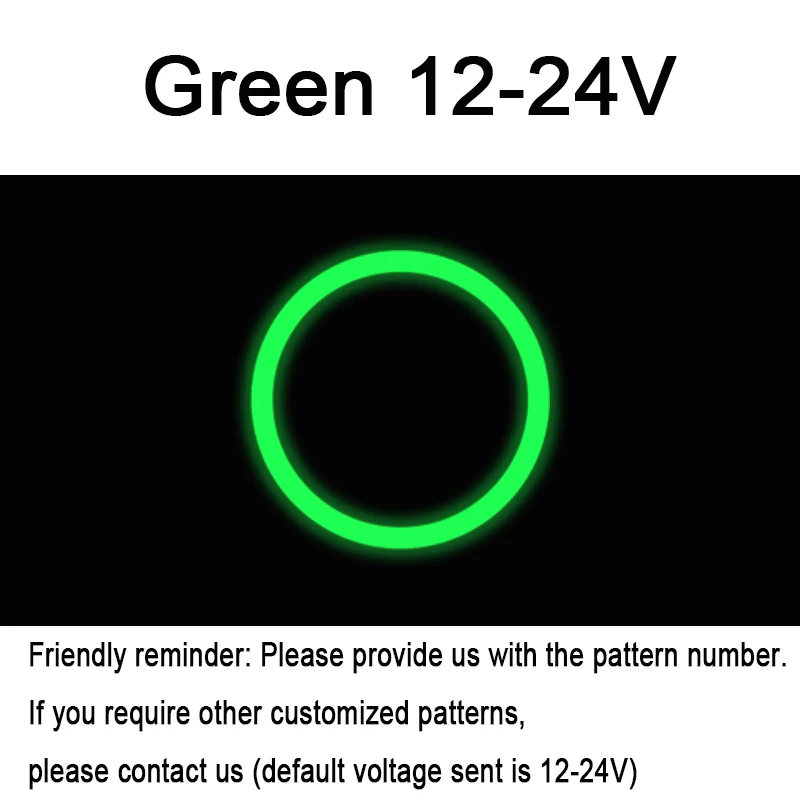

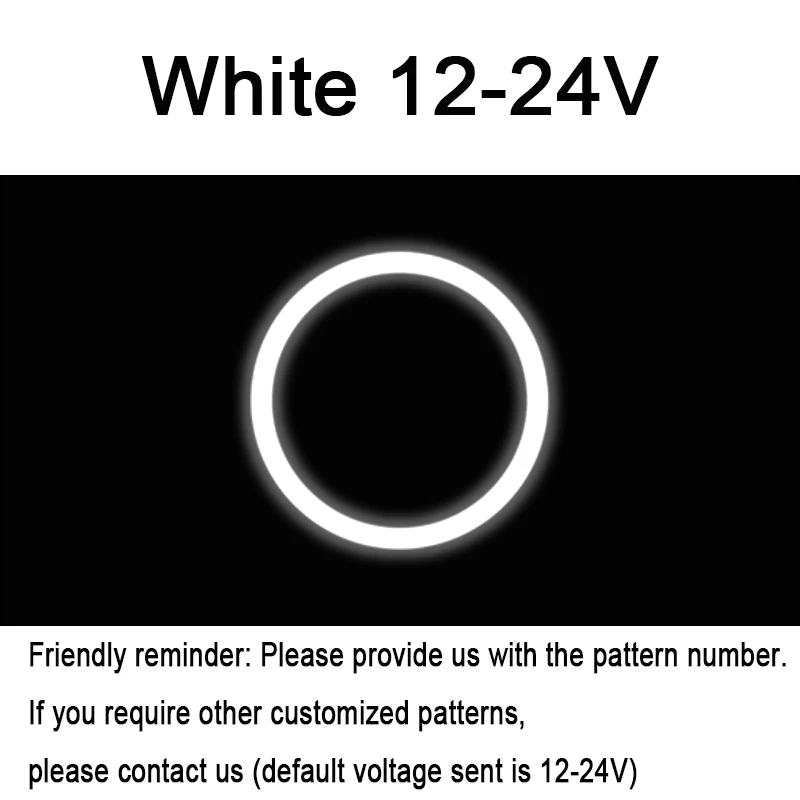

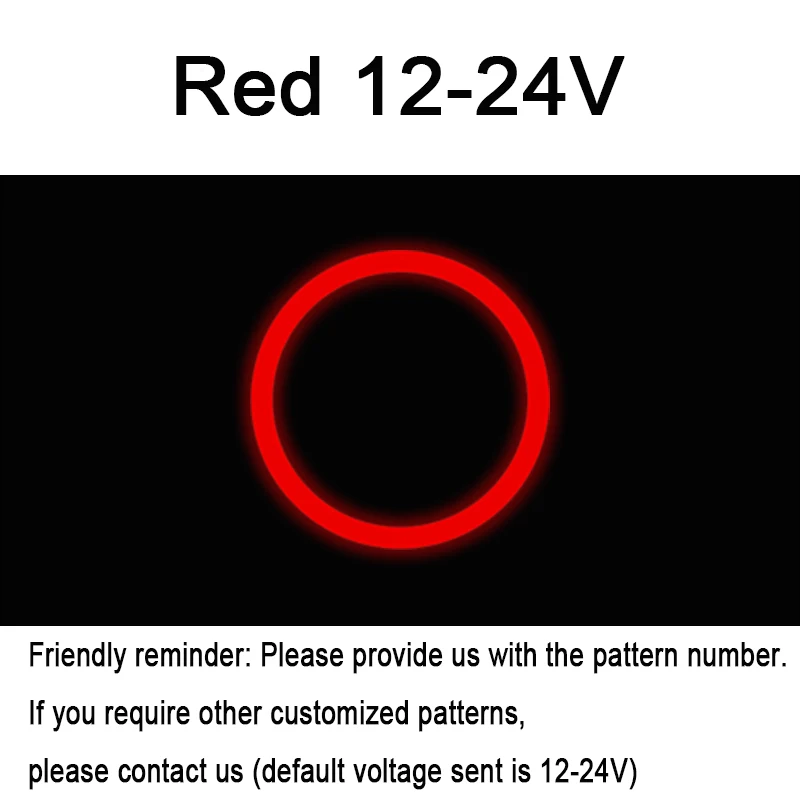

Blue LED 12-24VGreen LED 12-24VPlease Remark NumberPlease Remark NumberPlease Remark NumberPlease Remark NumberRed LED 12-24VWhite LED 12-24VYellow LED 12-24V
Self-locking (Black)Self-locking(Silver)Self-reset (Black)Self-reset (Silver)
16mm With socket19mm With socket22mm With socket
Clear
🔒 Secure Checkout🚚 Fast Shipping🔄 30-Day Returns🏆 Quality Guaranteed
SKU: 1005012052618276 Categories: ,

Description

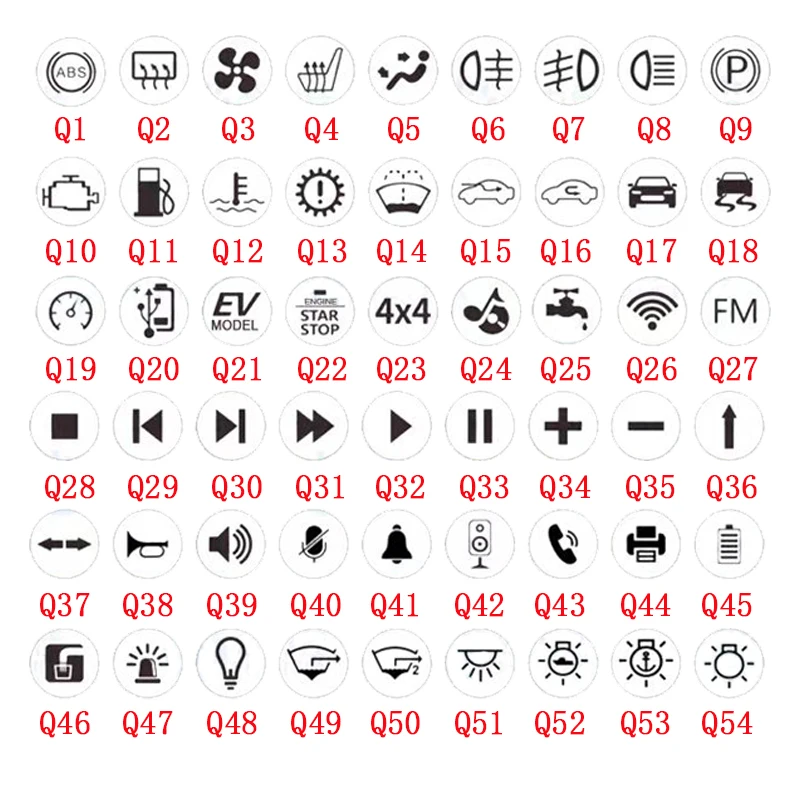

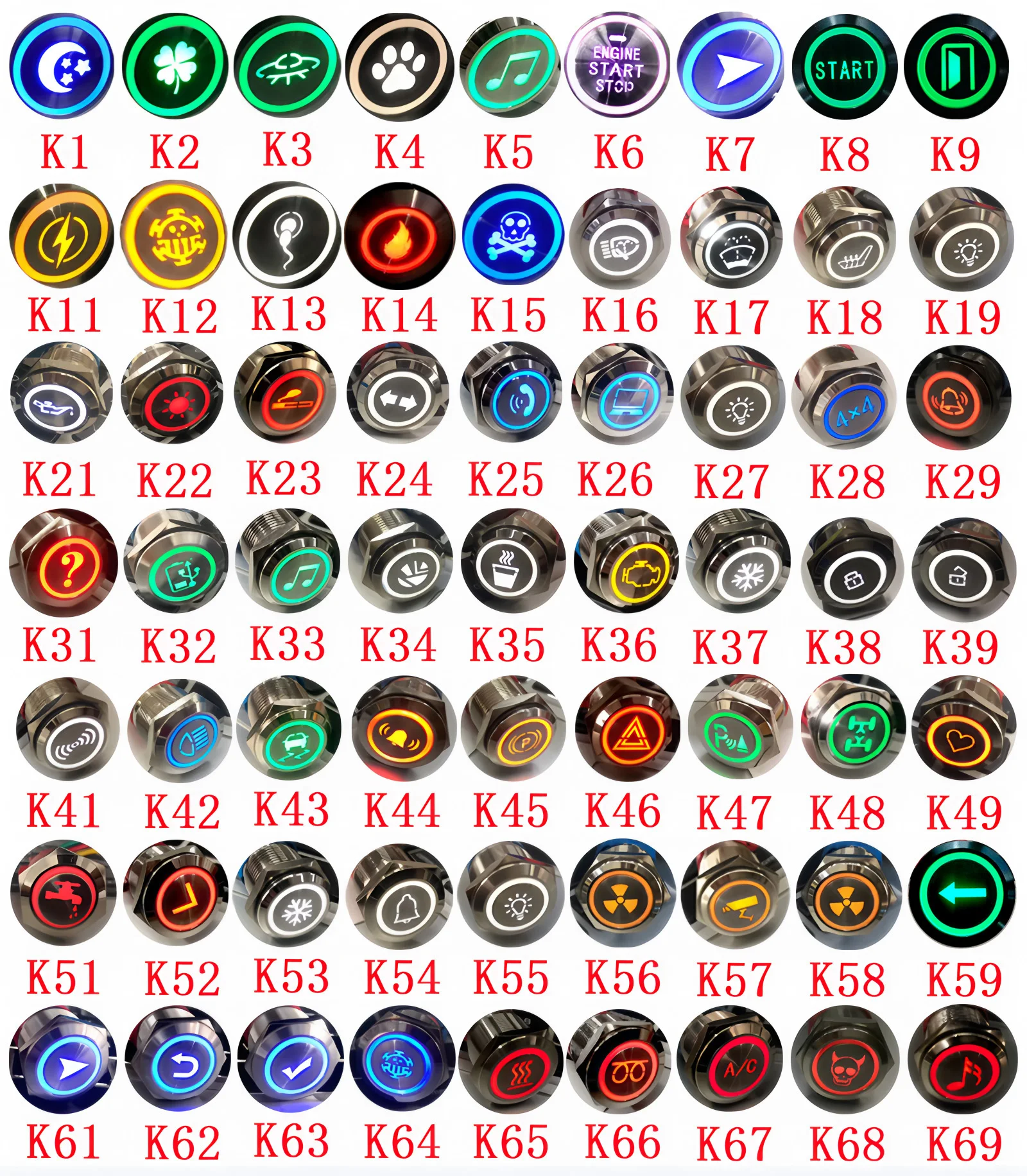

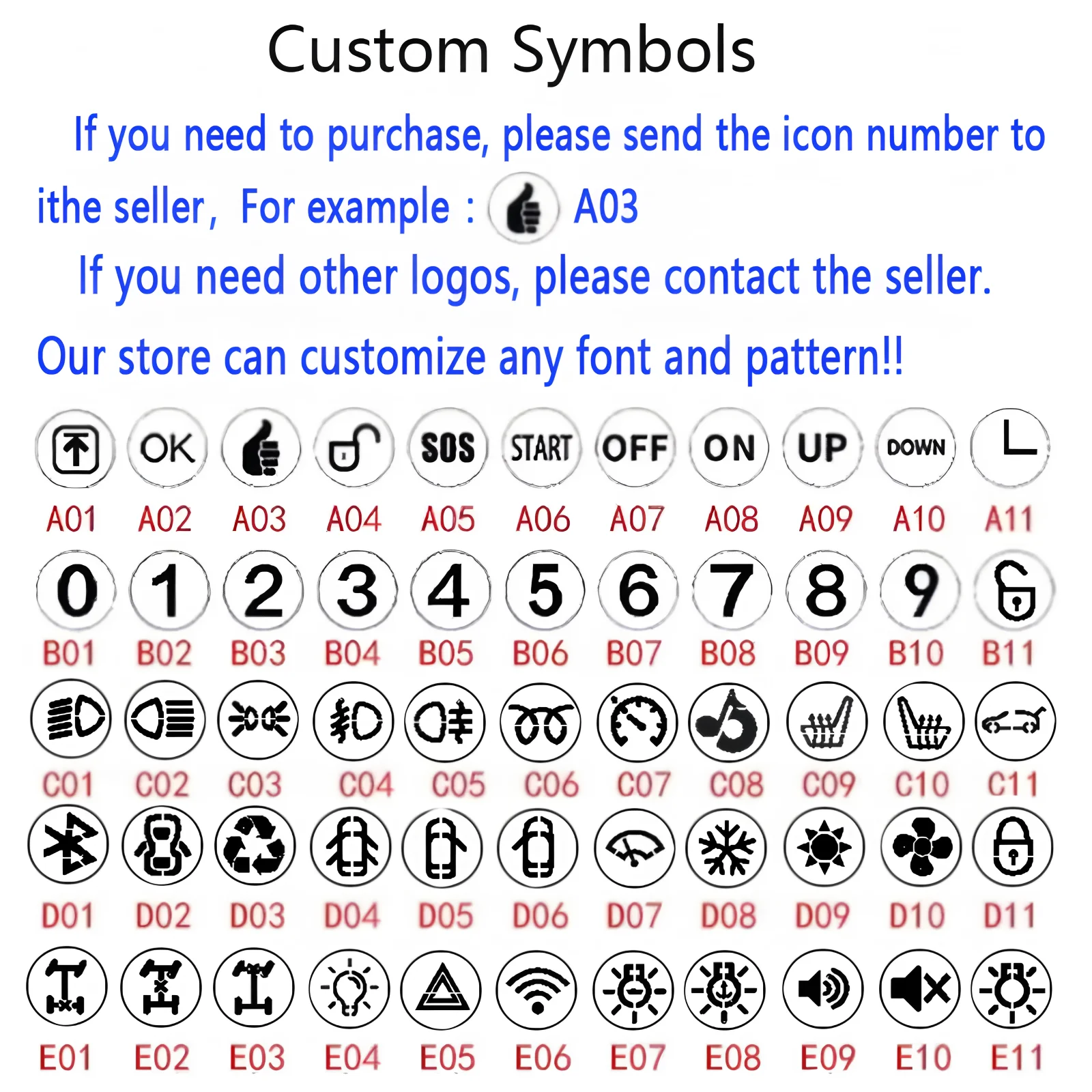

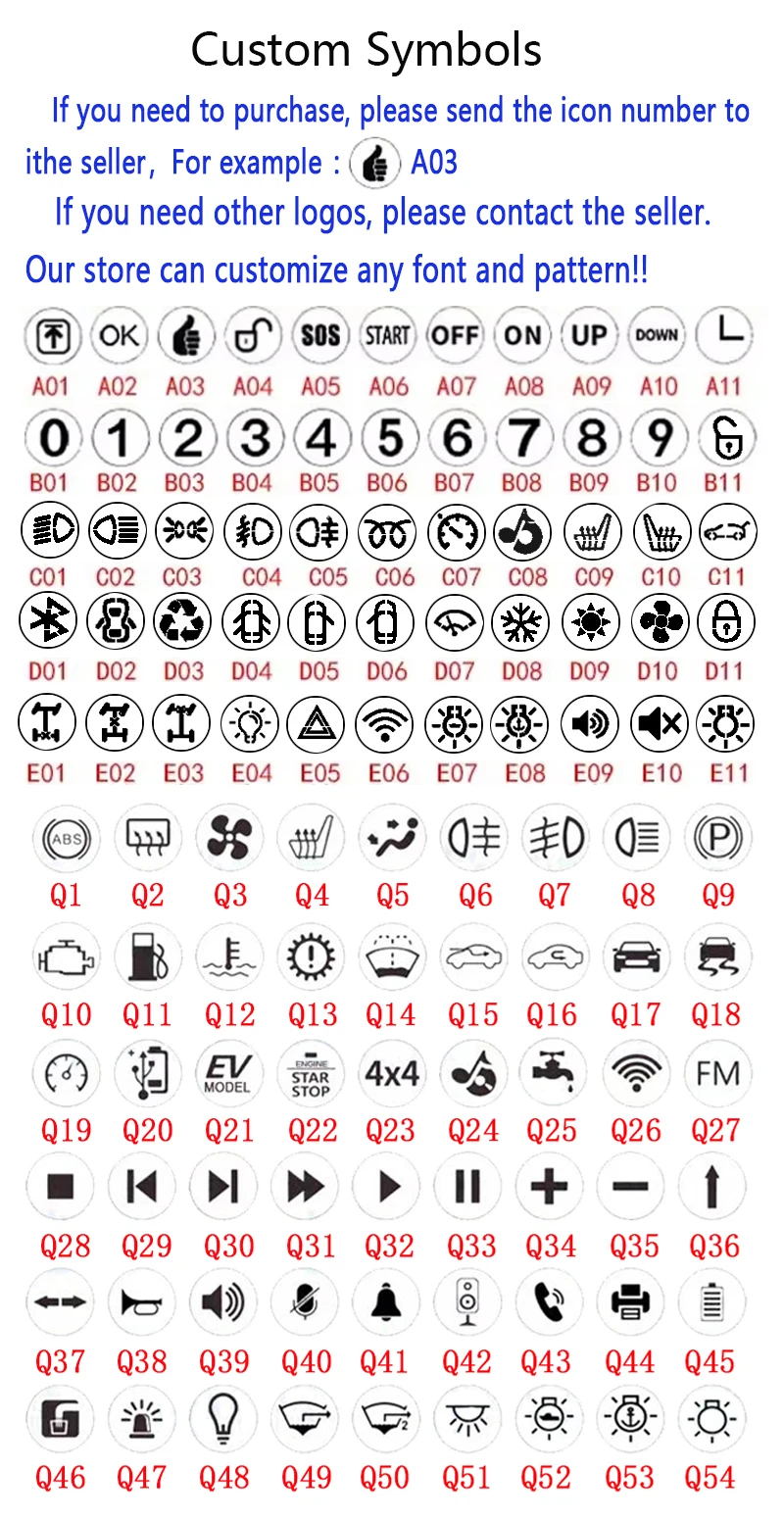

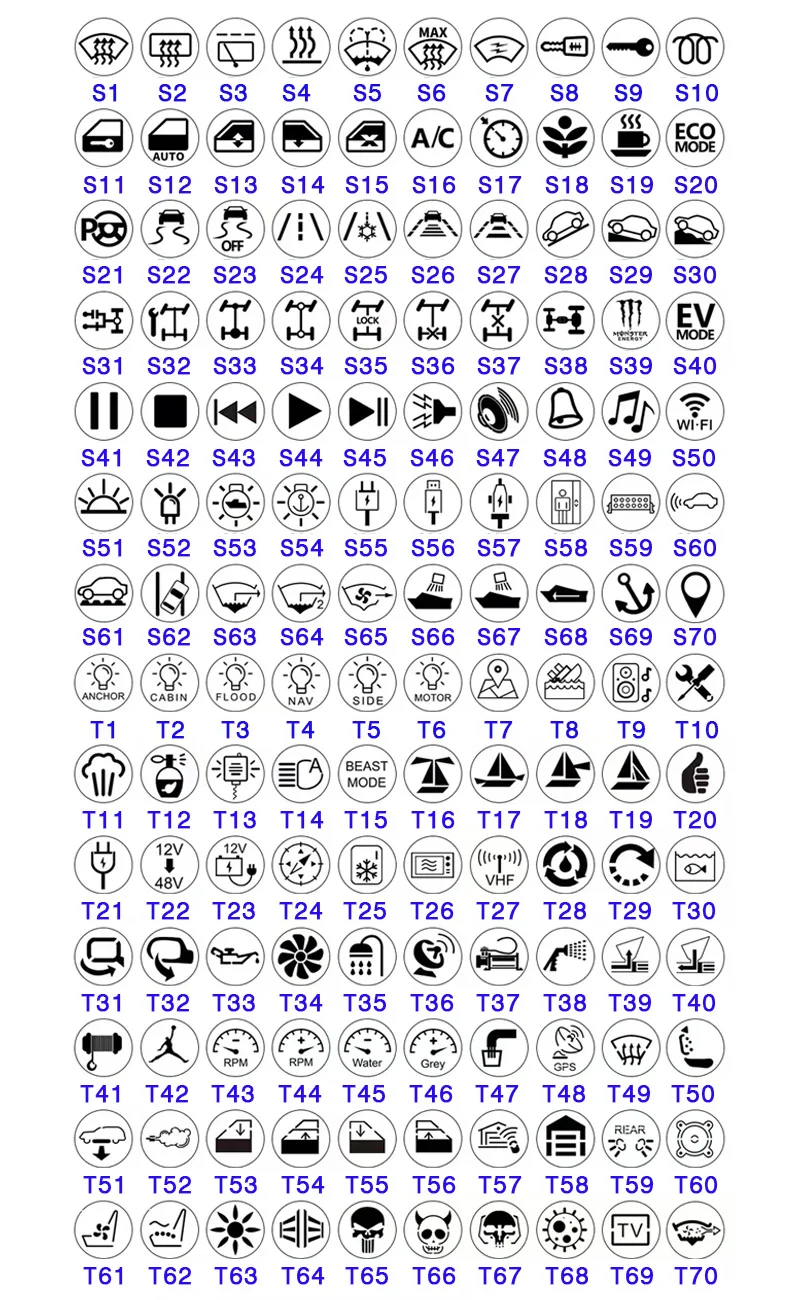

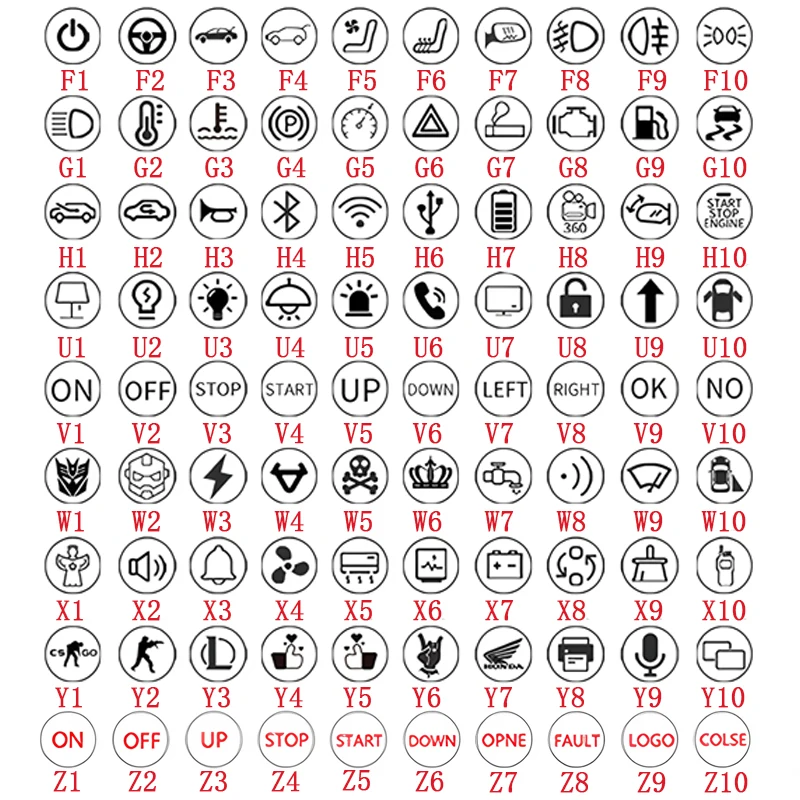

Very important : Please note the pattern you need to customize. For example, if you want to customize the first pattern, then remark A03. or send us the number and color you need

Send 12-24V by default (if you need a voltage of 3-6V, 110-220V, please let us know in the chat, or make a note in the order)

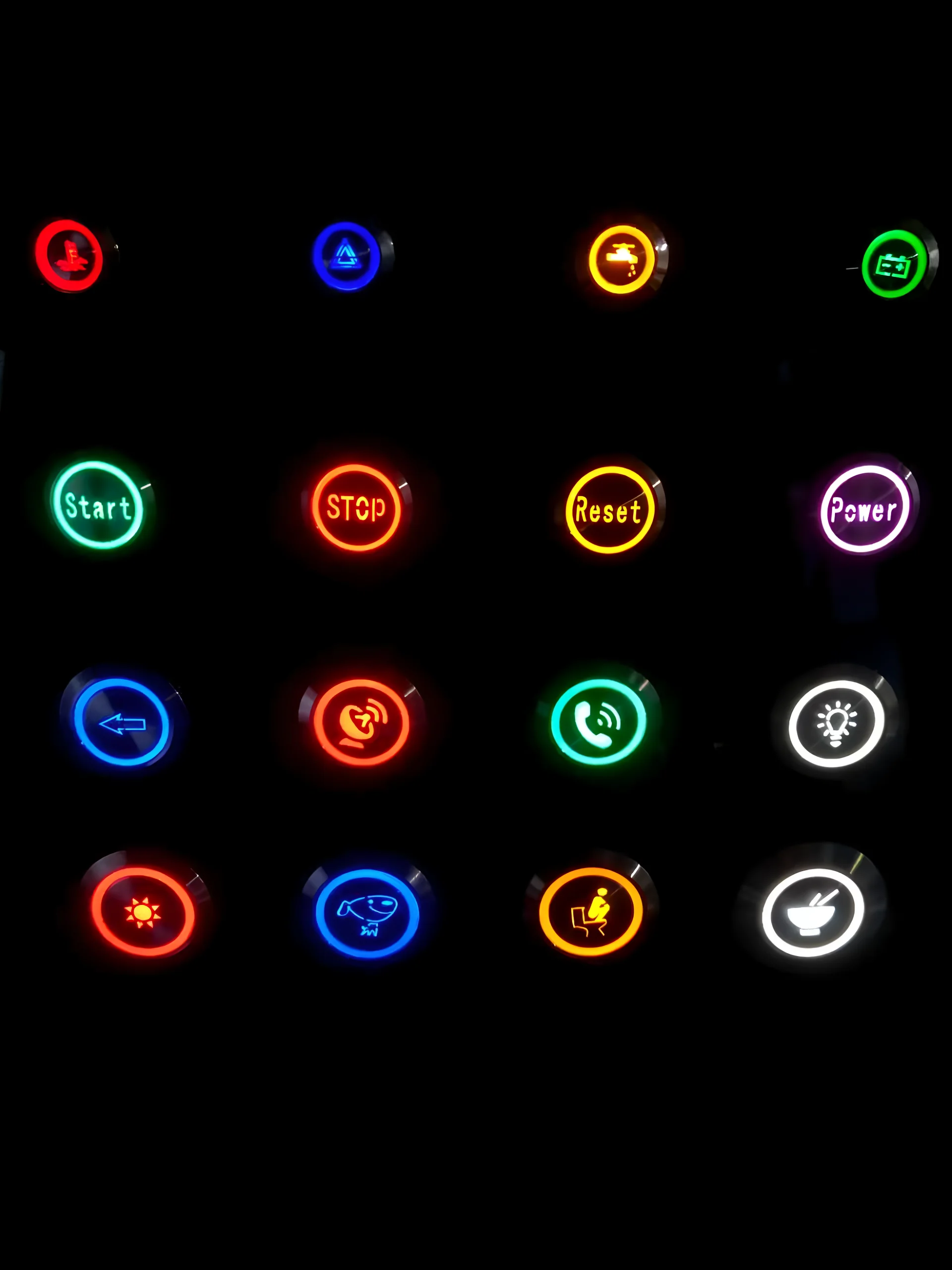

We support customization. Please send us the pattern you need to confirm that it can be made


If you have any questions, please feel free to contact us and we will reply as soon as we see them

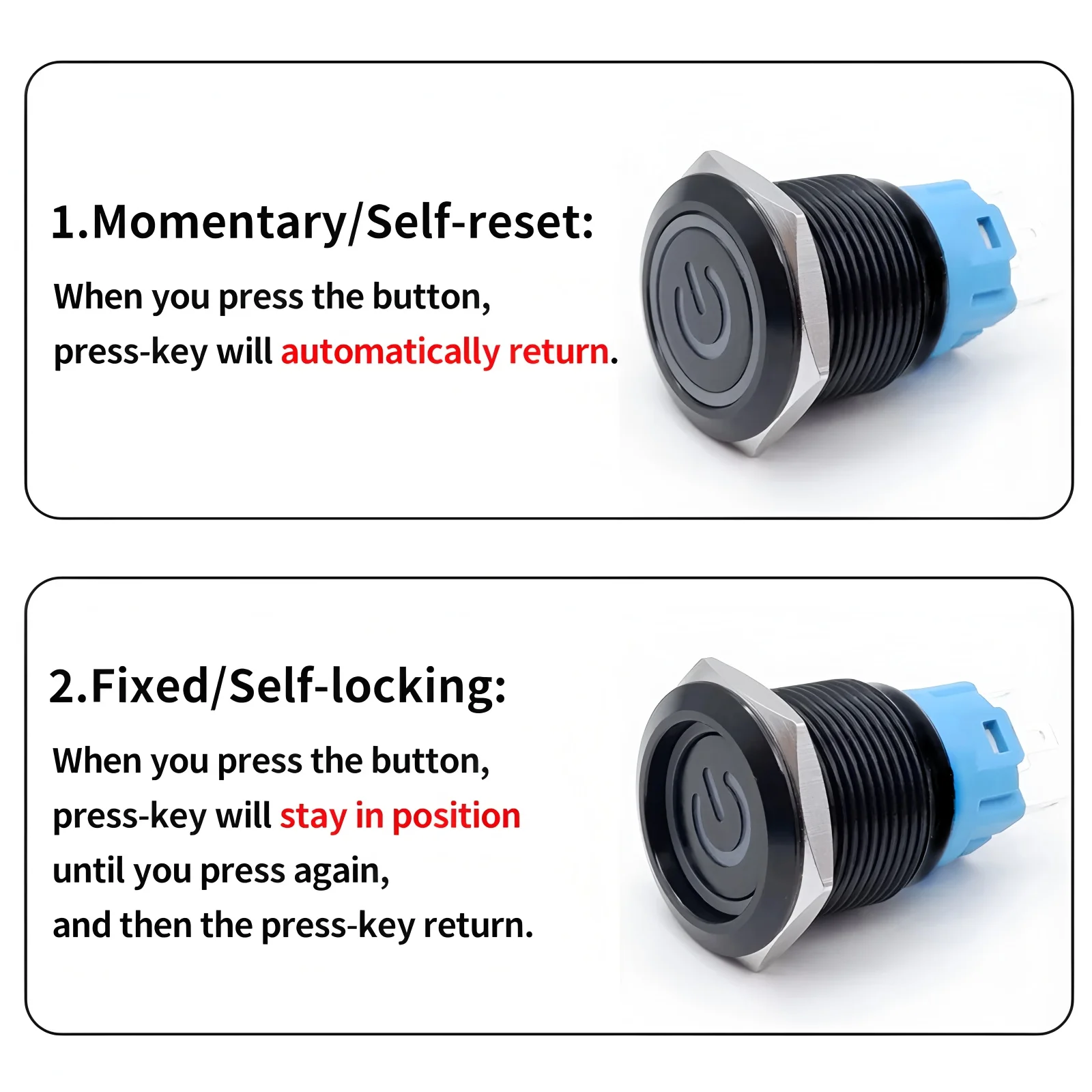

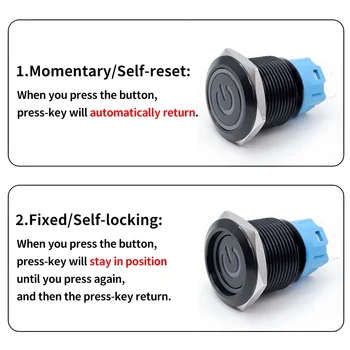

Difference between Momentary self-reset and Latching/Self-locking :


1.  Momentary/Self-reset : When you press the button, press-key will automatically return.


2.  Latching/Self-locking : When you press the button, press-key will stay in position until you press again.     And then the press-key return.

Wiring Instructions

1.What does the signal “C”、”NC” and “NO” means?

” NC “: Normal Close
” NO “: Normal Open
” C ” : Common

2.Do lights and switches have electrodes?

The lamp and switch have no electrode, no need to divide the positive and negative poles when wiring.

Wiring Diagram（16mm/19mm/22mm）

1、The button turns the LED light on and off，the circuit is alway open unless press the button.

2、LED lights are always on，the circuit is alway open unless press the button.

3、 The button turns the LED light on and off，the circuit is alway close unless press the button.

4、LED lights are always on，the circuit is alway close unless press the button.

Weight 10 kg
Dimensions 4 cm
Brand Name

NONE
Material

Copper
Origin

Mainland China
High-concerned chemical

None
EU LVD Voltage

Low voltage: Below 50Vac or 75Vdc
Switch Type

Push Button Switch
Model Number

Custom Metal Push Button Switch
Is Smart Device

no
Current

5A
Shell Material

Silver (copper), Black (aluminum)
Item Type

SWITCHES

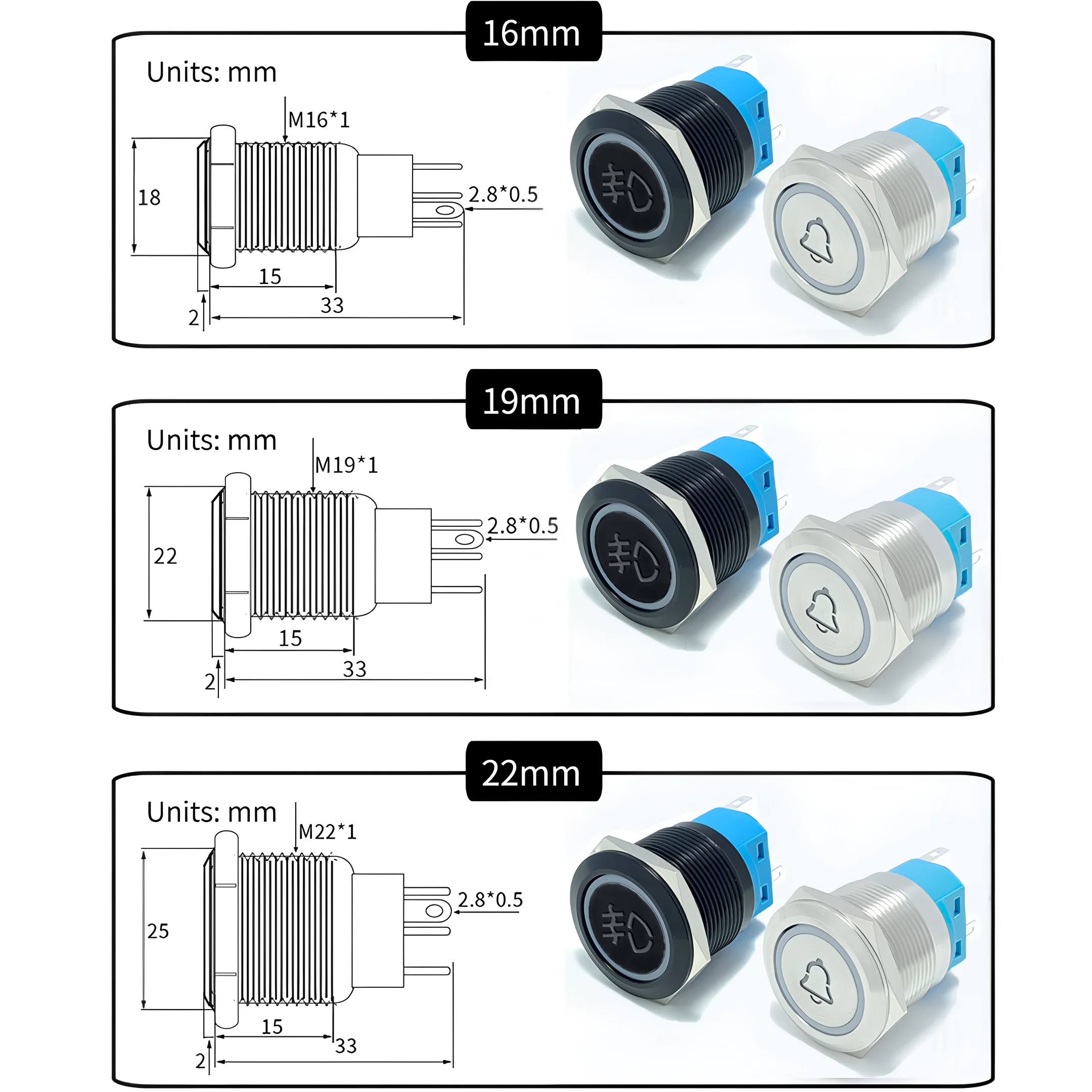

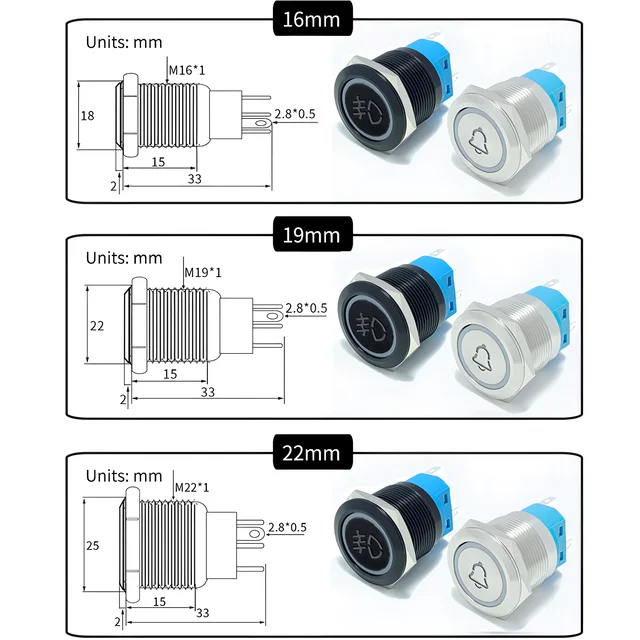

Opening Diameter

16mm/19mm/22mm
Operation method

Momentary self-reset/Latching self-locking
Shell color

Silvery/Black
Contact type

1NO1NC
LED Voltage

Default Send 12-24V (If you need 3V 6V 48V 110V 220V please contact us)
LED Color

Red, Green, Yellow, Blue, White, Purple, Orange
Using

Car, Boat, Motorcycles or other mechanical equipmen
